OpenThread Application Framework

Introduction

Welcome to the OpenThread Application Framework documentation! The OpenThread Application Framework is a comprehensive middleware solution for building Thread-based IoT devices. It provides a clean abstraction layer between OpenThread/CoAP protocols and device-specific hardware implementations, enabling rapid development of smart home devices such as buttons, lights, switches, and sensors. Key Features:

• ✅ Device abstraction layer with unified API
• ✅ Automatic device discovery and pairing
• ✅ CoAP application layer with simplified URI management
• ✅ Hardware-independent device driver interface
• ✅ Event-driven callback architecture
• ✅ Device name grouping for organized pairing
• ✅ Real-time status updates via CoAP Observe
• ✅ Configurable pairing rules and device filtering
• ✅ Factory reset capability
• ✅ Multi-platform support (STM32, ESP32)

Framework Architecture

The framework follows a layered architecture that separates concerns and provides clear abstraction boundaries:

┌────────────────────────────────────────────────────────────┐
│              Application/Device Layer                      │
│  (Button Device, Light Device, Sensor Device, etc.)        │
│  - Device-specific logic                                   │
│  - User interaction handling                               │
│  - Device state management                                 │
├────────────────────────────────────────────────────────────┤
│         OpenThread Application Framework                   │
│  ┌──────────────────────────────────────────────────────┐  │
│  │  Device Management API                               │  │
│  │  - Device discovery and pairing                      │  │
│  │  - Device name groups                                │  │
│  │  - Pairing rules and filtering                       │  │
│  ├──────────────────────────────────────────────────────┤  │
│  │  CoAP Application API                                │  │
│  │  - URI endpoint registration                         │  │
│  │  - CoAP Observe (subscription/notification)          │  │
│  │  - Resource management                               │  │
│  ├──────────────────────────────────────────────────────┤  │
│  │  Device Driver Interface                             │  │
│  │  - Callback-based event handling                     │  │
│  │  - Task management                                   │  │
│  │  - Device lifecycle management                       │  │
│  └──────────────────────────────────────────────────────┘  │
├────────────────────────────────────────────────────────────┤
│            Protocol Stack (OpenThread + CoAP)              │
│  - Thread mesh networking                                  │
│  - IPv6 addressing                                         │
│  - CoAP protocol                                           │
│  - Network commissioning                                   │
├────────────────────────────────────────────────────────────┤
│          Hardware Abstraction Layer (HAL)                  │
│  - GPIO drivers (buttons, LEDs)                            │
│  - Timer drivers                                           │
│  - Peripheral drivers (SPI, I2C, UART)                     │
│  - Platform-specific implementations                       │
└────────────────────────────────────────────────────────────┘

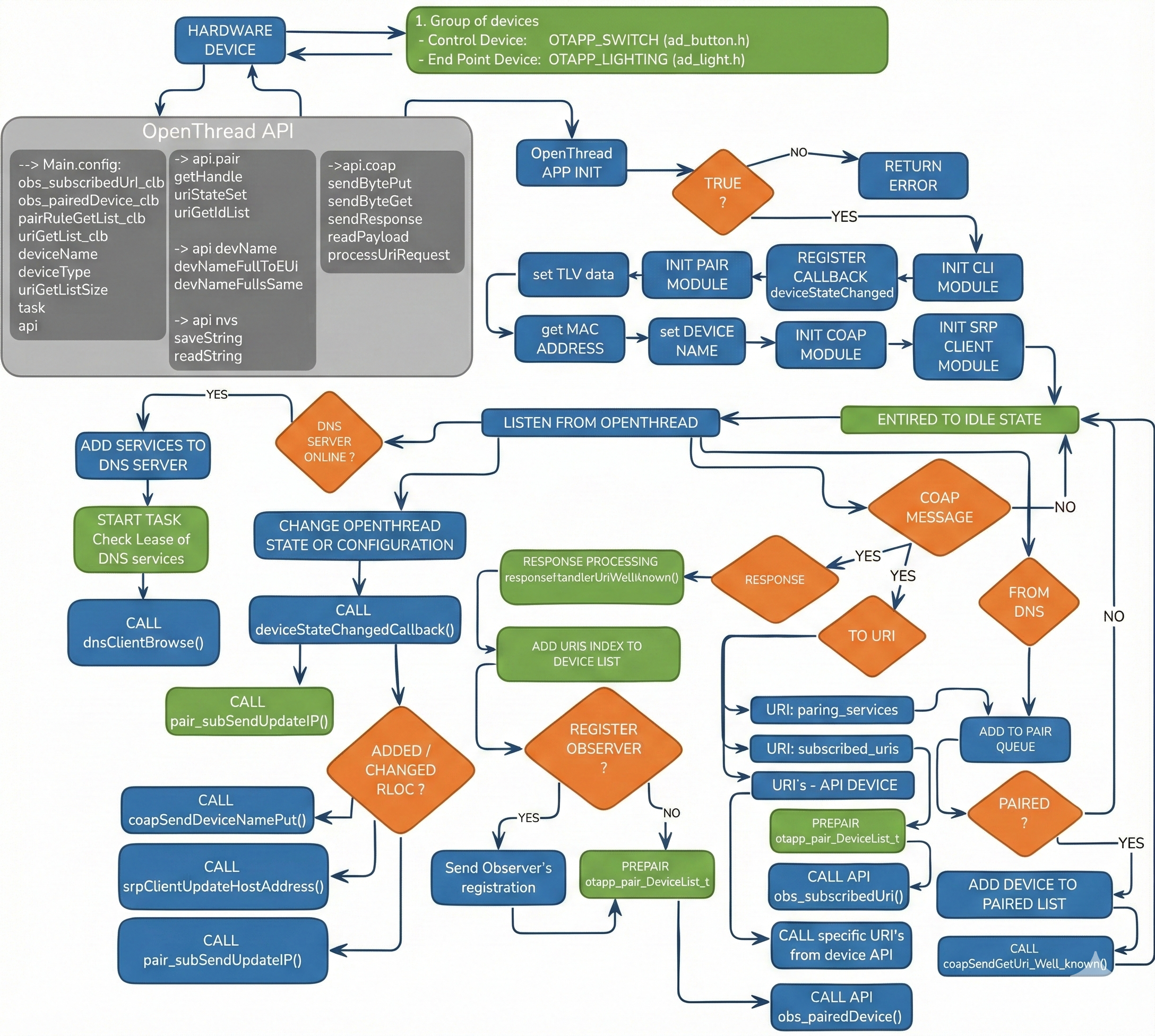

Application Flow

The application is built around the OpenThread Application Framework and the device driver API defined in main API for OpenThread hardware application.

High-level runtime flow:

• OpenThread APP init:
  • Configure Thread stack and commissioning modules
  • Initialize driver API instance via ot_app_drv_getInstance()
  • Set TLV data, MAC address, device name and register callbacks
  • Initialize modules: Pairing, COAP, SRP client, CLI (platform dependent)
• Enter idle / listen state:
  • Listen for OpenThread events (DNS, COAP messages, device state changes)
• DNS / service handling:
  • If DNS server is online, add services to DNS server and periodically check leases
  • Browse services and update pairing state if RLOC changes
• Device pairing and observer registration:
  • Process responses from OpenThread and add URI indexes to the device list
  • Register observers for paired devices and subscribed URIs
• COAP message processing:
  • Handle COAP messages from DNS and direct device URIs
  • Route requests to:
    • pairing_services URIs,
    • subscribed_uris,
    • device-specific URIs (device API)
  • For paired devices call:
    • obs_subscribedUri_clb() for URI updates
    • obs_pairedDevice_clb() when a new device is successfully paired
• Periodic device task:
  • Application main loop or RTOS task periodically calls ot_app_drv_task()
  • ot_app_drv_task() invokes drv->task() when provided by the device driver

This flow ensures that hardware devices are discovered, paired, registered in DNS, and controlled via COAP URIs using a unified driver API.

Quick Start

This section shows how to configure and run a simple OpenThread setup with:

• Controller device: Button device (ad_button)
• Target device: RGB light device (ad_light + ad_light_control + WS2812B)

1. Hardware Setup (example ESP32-C6):

• Connect 3 momentary buttons to GPIOs, with pull‑ups enabled:
• BUTTON_1 → GPIO 3
• BUTTON_2 → GPIO 9
• BUTTON_3 → GPIO 15

See also

Button Device Button Device

• Connect RGB LED strip (WS2812B) data line to a single GPIO used by the RMT driver:
• WS2812B DIN → GPIO 8

See also

Light Device Light Device

2. Software Integration – Light Device (target, based on main.c): The main application initializes the light device, OpenThread framework, WS2812B driver and timers

void app_main(void)
{
// add device init here
// ad_button_Init("device1");
ad_light_init("device1");
// DO NOT EDIT BELOW //
otapp_init();
xTim_Init();                                // init freeRTOS soft timers
ws2812b_if_init();                          // init interface - RMT
WS2812BFX_Init(ws2812b_if_getDrvRMT(), 1);  // init ws leds
WS2812BFX_SetSpeed(0, 100);                 // Speed of segment 0
WS2812BFX_SetColorRGB(0, 0, 0, 5);          // Set color 0
WS2812BFX_SetMode(0, FX_MODE_COLOR_WIPE);   // Set mode segment 0
WS2812BFX_Start(0);                         // Start segment 0
while (1)
{
WS2812BFX_Callback();                   // FX effects calllback
ot_app_drv_task();
vTaskDelay(pdMS_TO_TICKS(1));           // this has to be here for refresch watchdog
}
}

3. Software Integration – Button Device (controller): On another node, use the button device as controller

void app_main(void)
{
// add device init here
ad_button_Init("device1");
// ad_light_init("device1");
// DO NOT EDIT BELOW //
otapp_init();
xTim_Init();                                // init freeRTOS soft timers
ws2812b_if_init();                          // init interface - RMT
WS2812BFX_Init(ws2812b_if_getDrvRMT(), 1);  // init ws leds
WS2812BFX_SetSpeed(0, 100);                 // Speed of segment 0
WS2812BFX_SetColorRGB(0, 0, 0, 5);          // Set color 0
WS2812BFX_SetMode(0, FX_MODE_COLOR_WIPE);   // Set mode segment 0
WS2812BFX_Start(0);                         // Start segment 0
while (1)
{
WS2812BFX_Callback();                   // FX effects calllback
ot_app_drv_task();
vTaskDelay(pdMS_TO_TICKS(1));           // this has to be here for refresch watchdog
}
}

4. Pair and Control Devices:

• Ensure both devices use the same device name group, e.g. "device1"
• On the button device, perform the pairing procedure described in Procedure for Assigning a New Device to a Button .
• After successful pairing:
  • Button clicks are mapped to URIs defined in Button Device URI Management and Button Device Brightness Control.
  • The light device handles URIs defined in Light Device URIs and updates RGB output via ad_light_control and WS2812B driver.

See also

Device API (ot_app_drv.h) - main API for OpenThread hardware application

Button Device for button device implementation

Light Device for light device implementation

Device Abstraction

The framework provides a unified API for creating different device types:

• Button devices - Control switches with single/double/long-press
• Light devices - Dimmable and color-changing lights
• Sensor devices - Temperature, humidity, motion sensors
• Custom devices - Extend framework for new device types

Automatic Device Pairing

Built-in discovery and pairing mechanisms:

• Device discovery - Automatic detection of OpenThread devices
• Device name groups - Logical grouping for controlled pairing
• Pairing rules - Configurable device type filtering
• Persistent storage - NVS-based pairing data persistence

CoAP Application API

Simplified CoAP resource management:

• URI registration - Easy endpoint definition
• CoAP Observe - Subscribe to device state changes
• Request handlers - GET/POST/PUT method support
• Response builders - Simplified payload creation

Hardware Abstraction

Clean separation between application and hardware:

• Driver interface - Platform-independent API
• Callback system - Event-driven architecture
• Multi-platform - ESP32, STM32, portable to others
• Hardware libraries - OneButton, WS2812B, timers, etc.

Device Name Grouping

The framework supports device name groups for organized pairing and network segmentation. What is a Device Name Group?

• A string identifier (max 9 characters) that groups related devices
• Enables pairing only between devices in the same group
• Prevents accidental pairing across different rooms or zones Common Grouping Strategies: Room-Based Grouping:

  ad_button_Init("kitchen");   // Kitchen devices
  ad_button_Init("bedroom1");  // Bedroom 1 devices
  ad_button_Init("garage");    // Garage devices

  Function-Based Grouping:

  ad_button_Init("lights");    // All lighting control
  ad_button_Init("security");  // Security system
  ad_button_Init("climate");   // HVAC control

  Building-Based Grouping:

  ad_button_Init("house_a");   // Main house
  ad_button_Init("house_b");   // Guest house
  ad_button_Init("workshop");  // Workshop building

  Note

  Both controller and target device must have matching name groups to pair

  See also

  device_naming for detailed device name group guide

Framework Modules

Core & Infrastructure

• Application Core – System initialization, global configuration, and core type definitions.
• Shared Buffer Management – Thread-safe, key-based memory pool for zero-copy data processing.
• TLV Message Buffer – Serialization engine for Type-Length-Value data structures in constrained payloads.

CoAP Communication Stack

• CoAP Server Engine – Unified interface for sending responses (ACK/DATA) and handling UDP traffic.
• Resource Handlers – Application-specific URI handlers for hardware control and pairing services.
• Observe Registry – Server-side registry managing remote subscribers and asynchronous notifications.

Discovery & Network Identity

• Device Naming – Unique hostname generation and group-based filtering for organized pairing.
• SRP Client – Automated service registration (Advertising) for device discoverability.
• DNS Discovery – Active scanning (Browsing) and hostname resolution for finding remote services.
• Dataset Management – Storage and application of operational network credentials.

Pairing & Hardware Abstraction

• Device Pairing – Rule-based pairing logic, trusted device list management, and capability exchange.
• Device Driver Interface – Unified singleton API bridging network logic and physical hardware.

Platform Porting Layer

• RTOS Port – Unified inclusion of FreeRTOS headers for multi-platform compatibility.
• OpenThread Port – Abstraction for OpenThread stack instance retrieval.
• NVS Storage Port – Abstraction layer for persistent storage (Flash/EEPROM).

see more: - OTApp modules details

Device Implementations

• Button Device - Three-button control device
• Button Assignment - Device pairing and button mapping
• URI Management - CoAP endpoint handlers
• Brightness Control - Adaptive dimming algorithm

Hardware Libraries

• Utility Libraries - OneButton, Software Timers, SPIFFS, WS2812B
• Hardware Drivers - GPIO, timers, peripheral drivers

Button Functions (Example Device)

Each button supports multiple interaction types:

Button Action	Function	Example Use Case
Single-click	Toggle on/off	Turn light on or off
Double-click	Change mode/color	Cycle through light colors
Long-press	Continuous adjustment	Dim or brighten light

Flexible Pairing Rules

Three predefined pairing rule sets:

• Custom Rules - Allow only specific device types (default: lighting devices)
• Allow All - Pair with any OpenThread device
• Block All - Disable pairing (security/maintenance mode)

CoAP Integration

Example device endpoints:

• btn/state - Button state queries and notifications
• light/state - Light on/off state
• light/brightness - Brightness control
• light/color - RGB color control All endpoints support CoAP Observe for real-time updates.

Platform Support

The framework provides multi-platform support through compile-time configuration:

Platform	Microcontroller	SDK/HAL	Status
ESP32	ESP32-C6	ESP-IDF	✅ Active
STM32	STM32 series	STM32 HAL	⏳ In progress
Custom	Any	User-defined	🔧 Portable

Documentation Pages

• Getting Started Guide
  Step-by-step guide: configuring the ESP-IDF environment, building a project for various roles (Border Router, Control Panel, Controller) and the first run of hardware examples.
• Architecture and Design Patterns
  Detailed technical documentation describing the framework architecture, design patterns used (including Singleton, Observer, Facade) and RTOS techniques (queues, mutexes) and driver structures.
• Device Name Group Guide
• Platform Setup Instructions
• Configuration Guide
• API Reference
• Code Examples

Additional Resources

• OpenThread Official Site: https://openthread.io/
• ESP-IDF Documentation: https://docs.espressif.com/projects/esp-idf/
• STM32 HAL Documentation: https://www.st.com/
• Thread Group: https://www.threadgroup.org/

Unit Tests

The OpenThread Application Framework is covered by a comprehensive set of unit tests that verify core functionality of pairing, URI handling, device names, memory management, and RTOS integration.

Available test modules:

• ot_app_pair_test.c – tests device pairing logic, device lists and rules
• ot_app_pair_uri_test.c – tests URI pairing, URI ID lookup and mappings
• ot_app_coap_uri_obs_test.c – tests CoAP URI observe handling, subscription updates and observer callbacks
• ot_app_deviceName_test.c – tests device name parsing, EUI extraction and comparison functions
• ot_app_pair_rtos_test.c – tests pairing behavior and callbacks in an RTOS/task-based environment
• ot_app_buffer_test.c – verifies thread-safe shared buffer operations, mutex locking mechanics, boundary protection, and race condition resilience
• ot_app_msg_tlv_test.c – validates TLV serialization logic, packed structure handling, and buffer boundary enforcement

The tests are designed to run on the host using the UNITY framework, fff mocking framework, and mocked OpenThread / platform APIs. They serve as executable documentation for the behavior of the core modules.

See also

ot_app_pair.h for pairing data structures and APIs

ot_app_coap_uri_obs.h for URI observe management

ot_app_buffer.h for shared buffer safety mechanisms

ot_app_drv.h for driver API used by the tests

Author & License

Author

Jan Łukaszewicz (plhar.nosp@m.eo@g.nosp@m.mail..nosp@m.com)

Copyright

© 2025 MIT LICENCE

Note

This documentation was generated using Doxygen
